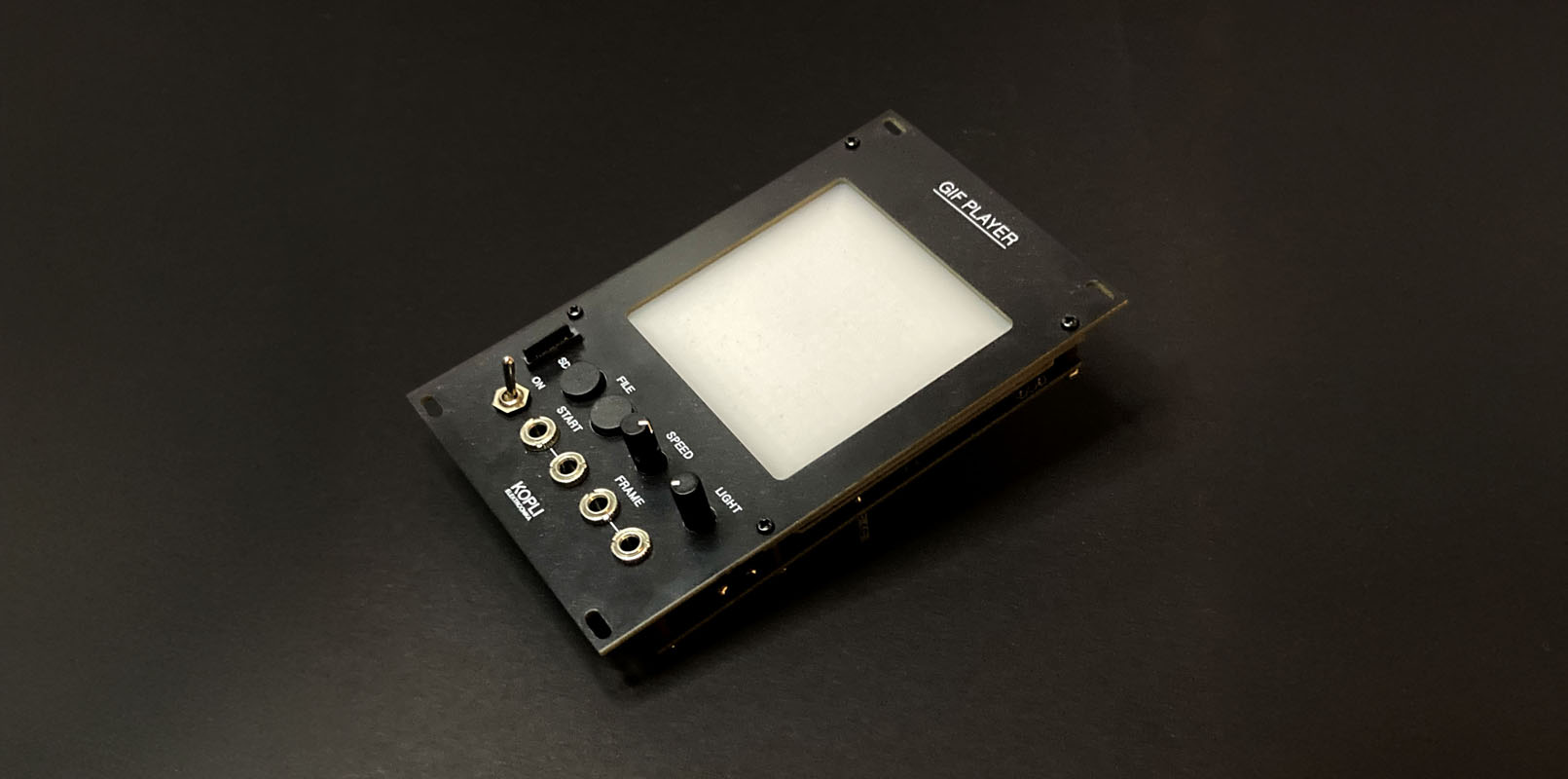

GIF-PLAYER
-
Put actual moving pictures on your synth rack —
yes, real GIF files that you can create with Photoshop! - Old-school video game style with 16x16 pixel resolution and up to 50 different colors.
- The screen is big, 60x60 mm and it features a blur effect!
- Adjust the GIF animation speed to better sync with your music. The playback speed is modified by adding or subtracting from the original file’s frame rate.
-
And it gets even better! You can sync the animation with your own music! Use the trigger signal to start the animation or change the frames.
Trigger rise on “START” : The animation starts from the beginning and plays to the end. Perfect for effects like explosions or flashes that should play fully with every beat.

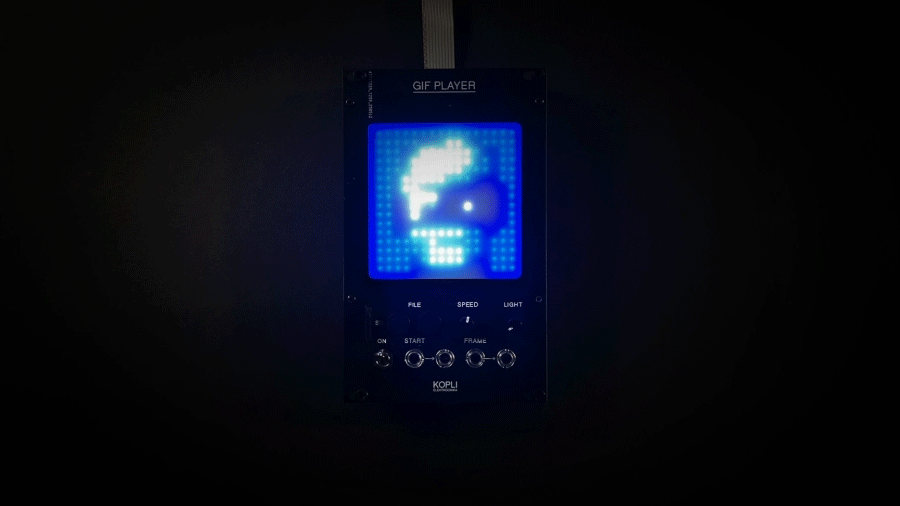

Trigger rise on “FRAME” : Advances the animation by one frame. Great for character animations—like a dancing robot—where each beat moves it one step forward.

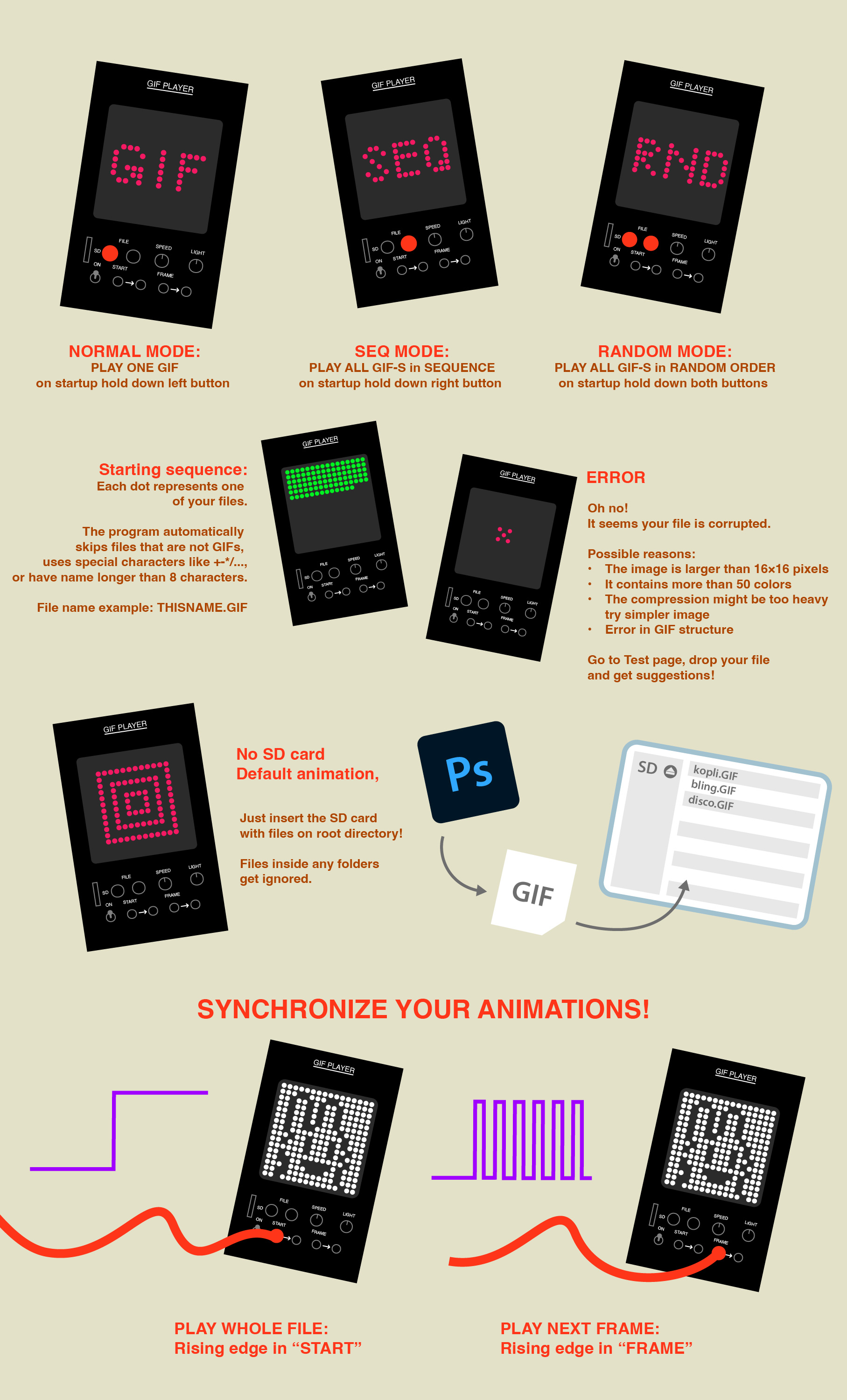

MODES:
Normal: Plays a single GIF animation from start to finish, then loops the same file.
SEQ: Plays GIFs one after another. When one animation ends, the next begins.
RND: Plays GIFs in random order.
Module height: 3U
Module width: 16HP (80mm)
Screen size: 60x60mm
Gif file resolution: 16x16px
Max colors: 50
Storage: SD card
Sd formating: MS-DOS (FAT)
Indexing depends on formatting. If the indexing is incorrect, the formatting is needed. (save your files first)
File name: maximum 8 characters
File name example: THISNAME.GIF
Trigger high: rising edge 5v
Input is directly connected to output, not buffered
Power consumption:
To drive all those LEDs, this module uses more power than typical Eurorack modules:
Min brightness, minimum LEDs: 40 mA @ +12v
Max brightness, maximum LEDs: 450 mA @ +12v
Typical use: In a room with no sunlight, around 100 mA.
Use caution
A non-ventilated case can lead to heat buildup.
Make sure your Eurorack case has adequate ventilation openings to allow proper airflow. Please do not leave the product unattended while it is powered on.
Use with caution on maximum lightnes
Watching it in a dark room may cause eye strain or discomfort.
This is visualizer, this module does not produce or process sound at any way.
Module width: 16HP (80mm)
Screen size: 60x60mm
Gif file resolution: 16x16px
Max colors: 50
Storage: SD card
Sd formating: MS-DOS (FAT)
Indexing depends on formatting. If the indexing is incorrect, the formatting is needed. (save your files first)
File name: maximum 8 characters
File name example: THISNAME.GIF
Trigger high: rising edge 5v
Input is directly connected to output, not buffered
Power consumption:
To drive all those LEDs, this module uses more power than typical Eurorack modules:
Min brightness, minimum LEDs: 40 mA @ +12v
Max brightness, maximum LEDs: 450 mA @ +12v
Typical use: In a room with no sunlight, around 100 mA.
Use caution
A non-ventilated case can lead to heat buildup.
Make sure your Eurorack case has adequate ventilation openings to allow proper airflow. Please do not leave the product unattended while it is powered on.
Use with caution on maximum lightnes
Watching it in a dark room may cause eye strain or discomfort.
This is visualizer, this module does not produce or process sound at any way.
BUY FROM ETSY
BUY FROM PERFECTCIRCUIT

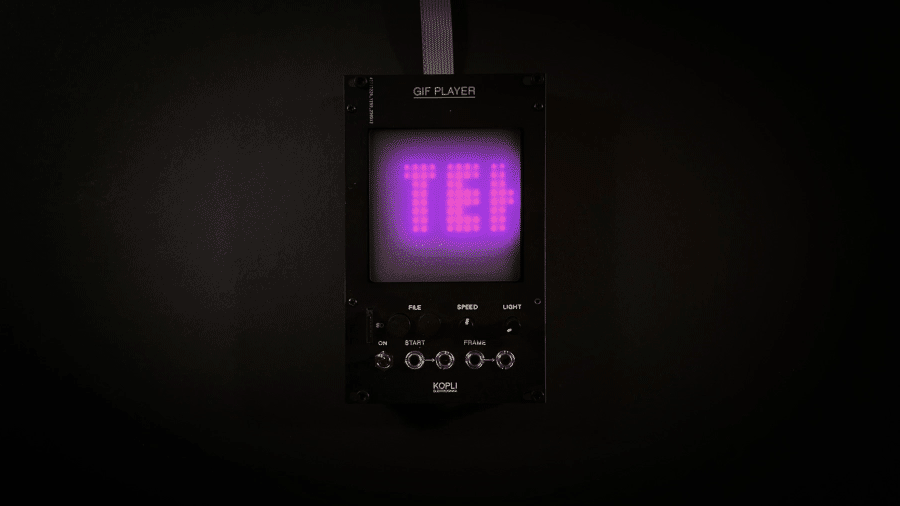

DISPLAY YOUR OWN IMAGES OR TEXT IN EURORACK!
TEST your own GIF files here

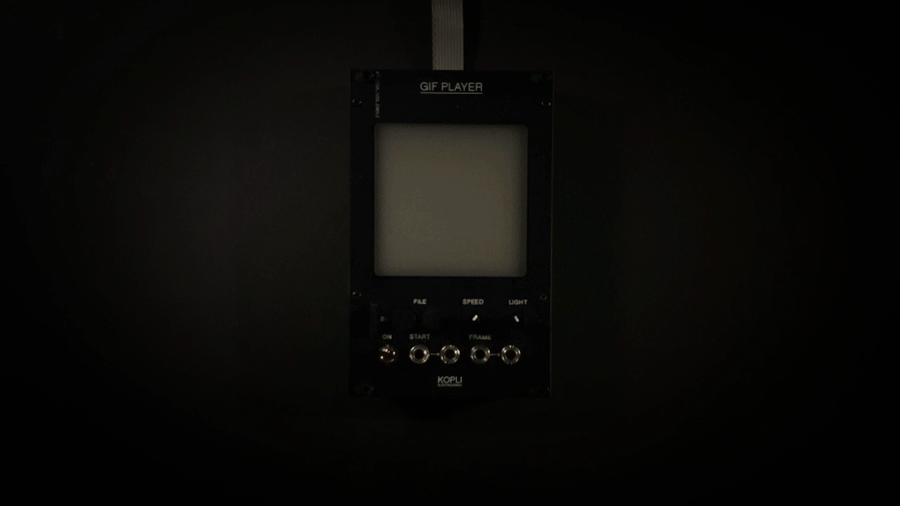

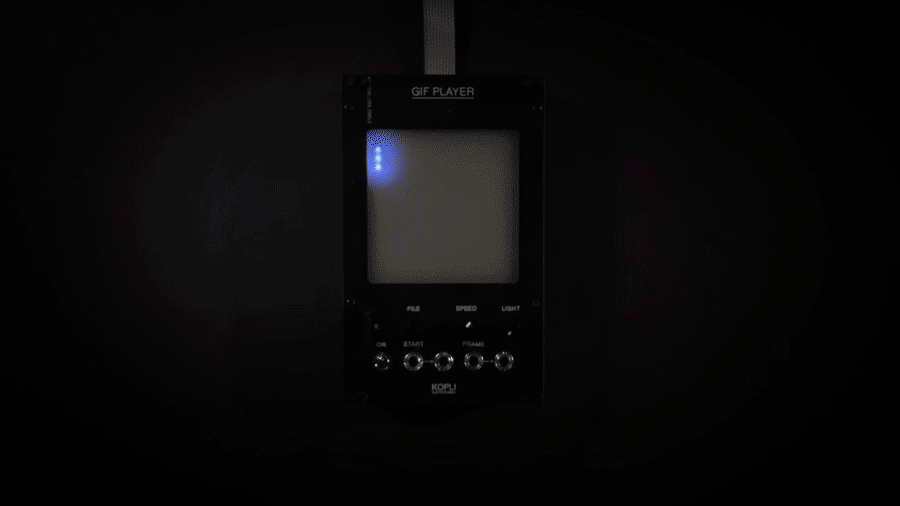

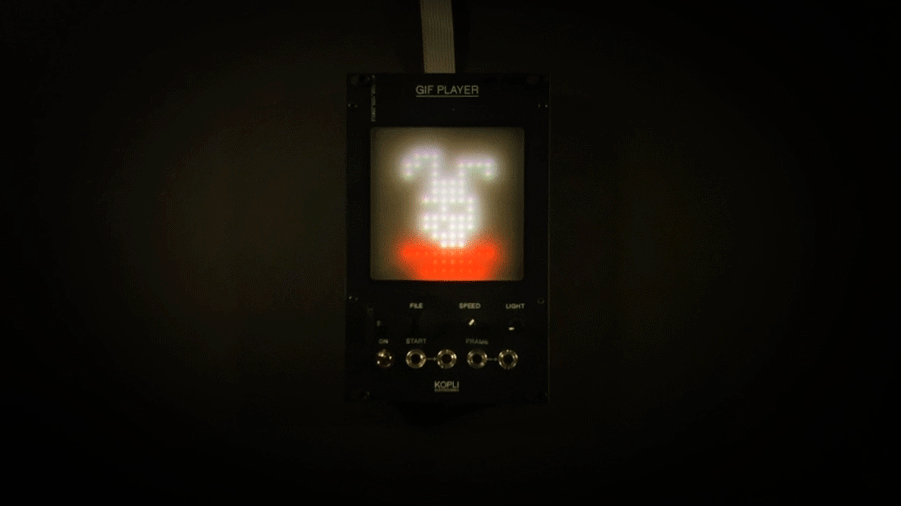

HERE IS SOME OF YOUR DEFAULT GIF FILES
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
 |
 |
 |
|
 |
|||
 |
 |
||
 |
 |
||
 |
 |
||
 |
|
||
 |
 |
 |
|
 |
 |
||
 |
 |
||
 |
|||
 |
 |
 |
|
 |
 |
||
 |
 |
||
 |
|||
 |
|||
 |
 |
||
 |
 |
||
 |
 |
/td> | |
 |
 |
||
 |
 |
 |
 |
 |
|||
 |
|
||
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
||
 |
 |
||
 |
 |
||
 |
|
||
 |
|||
 |
|||
 |

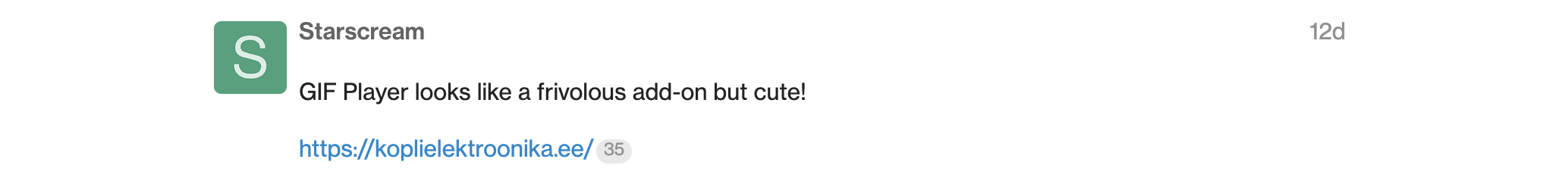

Nice comment in elektronauts :D
