- Light up your synth rack with endless variations of animated visual patterns!

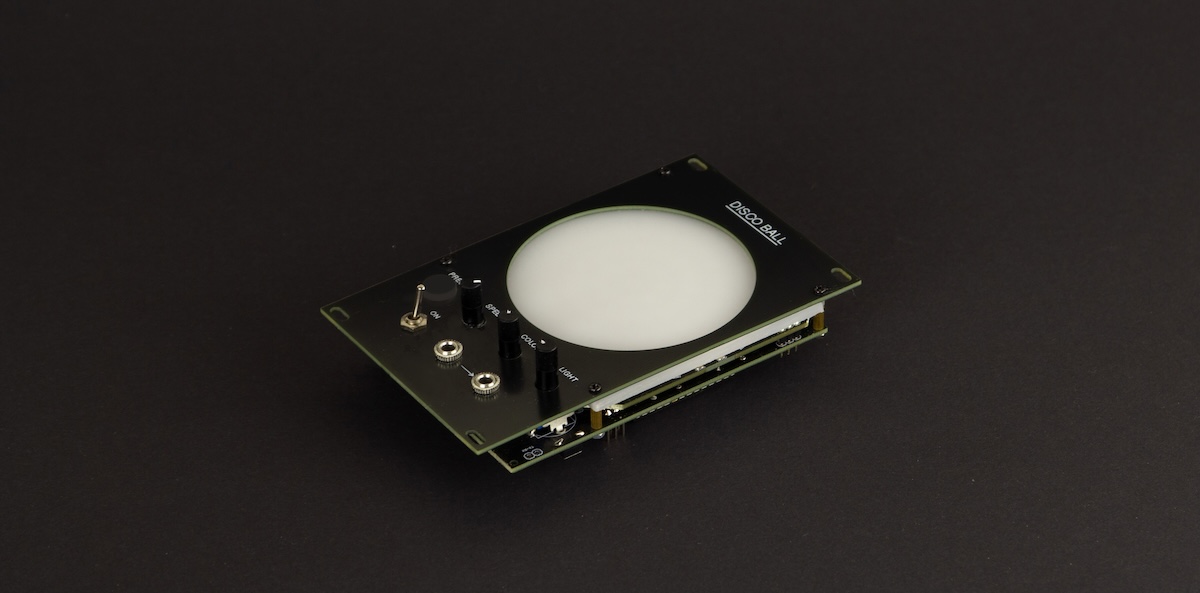

- LEDs with vibrant colors dance around a circular screen—specially designed for smooth, round motion. Unlike traditional matrix layouts, the LEDs are arranged in concentric circles to create mesmerizing circular animations.
- Enjoy 11 presets with adjustable speed and color settings. Customize to match your style.
- And the colors? I didn’t hold back. From every shade of the rainbow to dynamic color shifts, you’ll get vivid, evolving light shows that respond to your music.
- Most importantly: use a gate or trigger pulse to sync with your music!
Module width: 16HP (80mm)
Screen diameter: 70mm
Presets : 11
Color options: 8 for each preset
Sync pulse: rising edge 5v
Max gate/trigger PPM : 150
Input is directly connected to output, not buffered
Input voltage: 12v
Operating voltage: 5v
Power consumption:
To drive all those LEDs, this module uses more power than typical Eurorack modules:
Min brightness, minimum LEDs: 40 mA @ +12v
Max brightness, maximum LEDs: 500 mA @ +12v
Typical use: In a room with no sunlight, around 100 mA.
Use caution
A non-ventilated case can lead to heat buildup. Make sure your Eurorack case has adequate ventilation openings to allow proper airflow.
Please do not leave the product unattended while it is powered on.
Also watching it in a dark room may cause eye strain or discomfort.
This is visualizer. This module does not produce or process sound at any way.
DISCOBALL

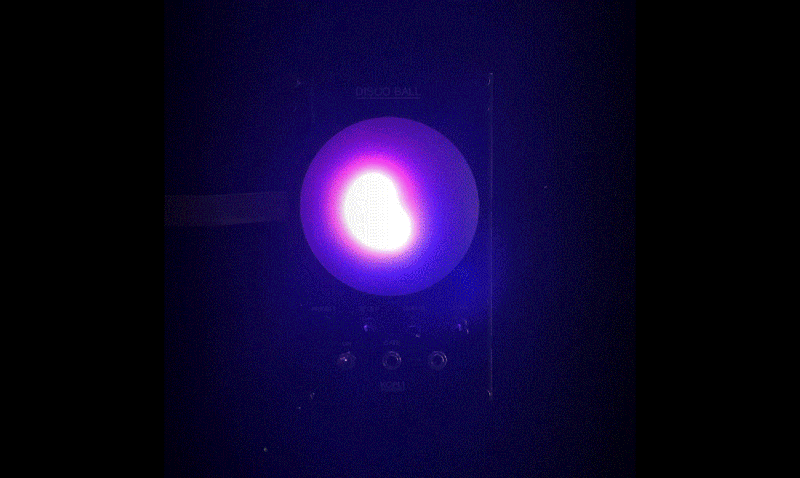

LEDs flash randomly across the screen, like a disco ball.
Speed: Adjusts flashing speed and number of LEDs.
Pulse: Generates temporarily more flashing LEDs.
Color option 1: White
Color option 2-6: Dual color
Color option 7: Colors that change over time
Color option 8: Random colors
SNOWFLAKE
Randomly generated images appear on screen.
Pulse : Generates a new image.
Color option 1: White
Color option 2-7: Dual-color and Tri-color
Color option 8: Random colors
LIGHTSPEED
You’re in a spaceship, watching stars fly past.
Lighting dots appear from the center and move toward the edges.
Pulse: Generates new "star"
Color option 1: White
Color option 2-7: Dual color
Color option 8: Colors that change over time
RANDOM ANIMATION
Six different animations cycle through.
Pulse: Triggers a new animation.
Color option 1: White
Color option 2-6: Dual color
Color option 7: Colors that change over time
Color option 8: Random colors
HALF-CIRCLES
A half-circle appears and rotates.
Pulse: Creates a new half-circle.
Color option 1: White
Color option 2: Red
Color option 3: Yellow
Color option 4: Green
Color option 5: Light blue
Color option 6: Pink
Color option 7: Colors that change over time
Color option 8: Gradient colors that change over time
CIRCLES
A circle appears and fades away.
Pulse: Generates a new circle.
Color option 1: White
Color option 2: Red
Color option 3: Yellow
Color option 4: Green
Color option 5: Light blue
Color option 6: Pink
Color option 7: New color with every generation
Color option 8: Colors change every step.
MOLECULE
A dot moves continuously around the screen.
Pulse changes it's trajectory.
Color option 1: White
Color option 2: Red
Color option 3: Yellow
Color option 4: Green
Color option 5: Lihght-blue
Color option 6: Dark-blue
Color option 7: Pink
Color option 8: New color at every generation
DOTS AND DONT'S
Sometimes there is dot and sometimes there is not dot
Pulse: Generates new sequence
Color option 1: White
Color option 2-6: Dual color
Color option 7: Colors that change over time
Color option 8: Random gradient colors
IMPULSE
A filled circle flashes on screen and disappears
Pulse: Creates a new one.
Color option 1: White
Color option 2: Red
Color option 3: Yellow
Color option 4: Green
Color option 5: Lihght-blue
Color option 6: Dark blue
Color option 7: Pink
Color option 8: Colors that change over time
PARANKA
A multicolor wheel fills the screen.
Pulse: changes the color
Color options: Control how quickly the colors change and how many colors are on screen.
GOA
The screen is filled with wild, shifting colors.
Pulse: changes the color
Color options: Control how quickly the colors change change and how many colors are on screen.
